Outdoor RGB Full Color SMD LED Display

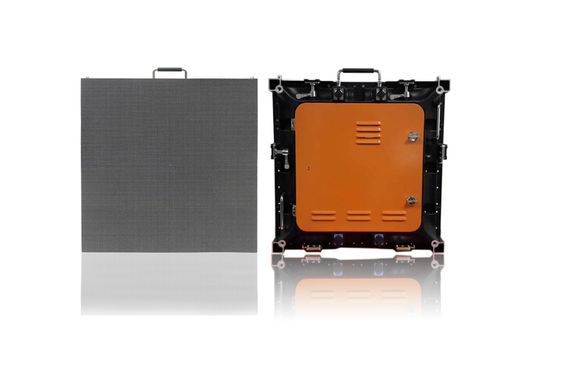

P4.8 Outdoor RGB Full Color SMD LED Display
ProductModelP4.8PixeLPitch4.8mmLEDPackageSMD2727ModuleSize192x192mmModuleResolution40x40=1600pixelsPixelDensity43402pixels/㎡DriveMode1/10scanBrightness4500cd/㎡RefreshRate≥960HZGrayScale12-16bitsViewAngel140°(H)/140°(V)CabinetSize576x576mmCabinetResolution120x
| Product Model | P4.8 |
| PixeL Pitch | 4.8mm |
| LED Package | SMD2727 |
| Module Size | 192x192mm |
| Module Resolution | 40x40 =1600 pixels |
| Pixel Density | 43402 pixels/㎡ |
| Drive Mode | 1/10 scan |
| Brightness | >4500cd/㎡ |
| Refresh Rate | ≥960HZ |
| Gray Scale | 12-16 bits |
| View Angel | 140°(H)/140°(V) |
| Cabinet Size | 576x576mm |
| Cabinet Resolution | 120x120 =14400 pixels |
| Cabinet Materials | Aluminum |
| Viewing Distance | 5-80M |
| Working Voltage | Input AC 100~240; Output DC 5V |
| Average Power Consumption | 450W/㎡ |
| Maximum Power Consumption | 900W/㎡ |
| Lifespan | 100,000 hours |
| Trouble Free Time | 10,000 hours |
| Working Temp /Humidity | -20°C~50°C/10%~90% |
| Storage Temp / Humidity | -40°C~60°C/10%~90% |
| Protection Grade | IP65 |
| Control System | Synchronous / Asynchronous |
| Serviceability | Rear / Front |
192x192mm
